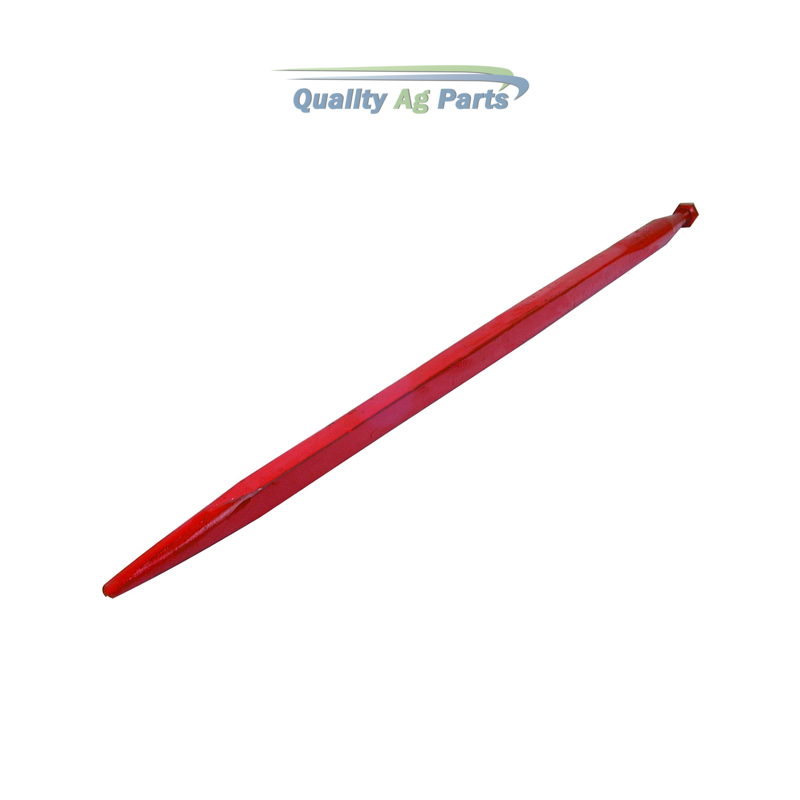

Loader Tine – Straight 1,000mm, Thread size: M20 x 1.5 (Square) To fit as: KK221155
Loader Tine – Straight 1,000mm, Thread size: M20 x 1.5 (Square) To fit as: KK221155

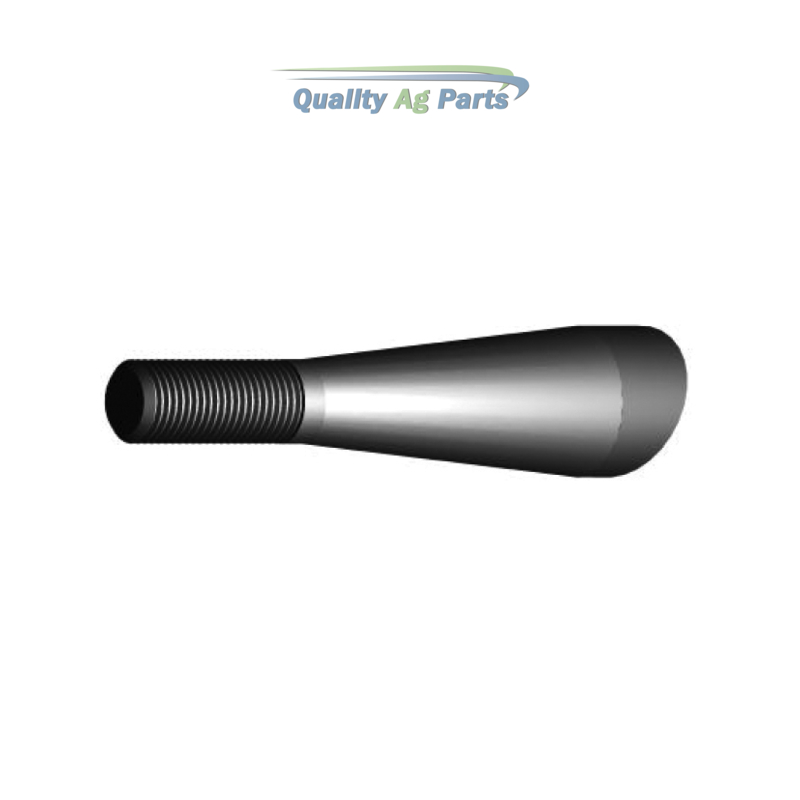

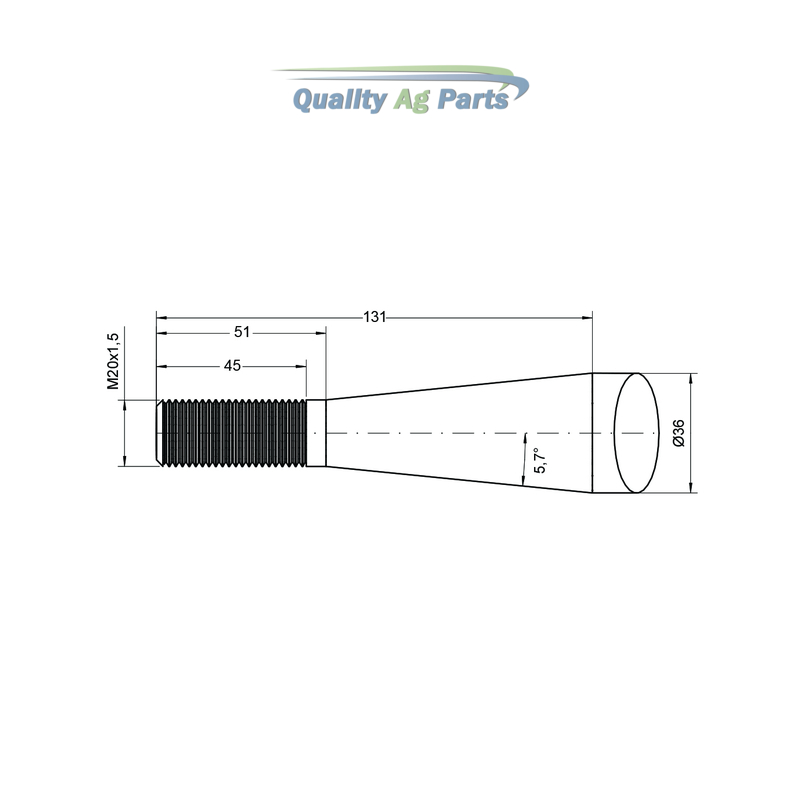

Fitting: Conus 1
Max. Tine Ø36mm
$126.40 +GST

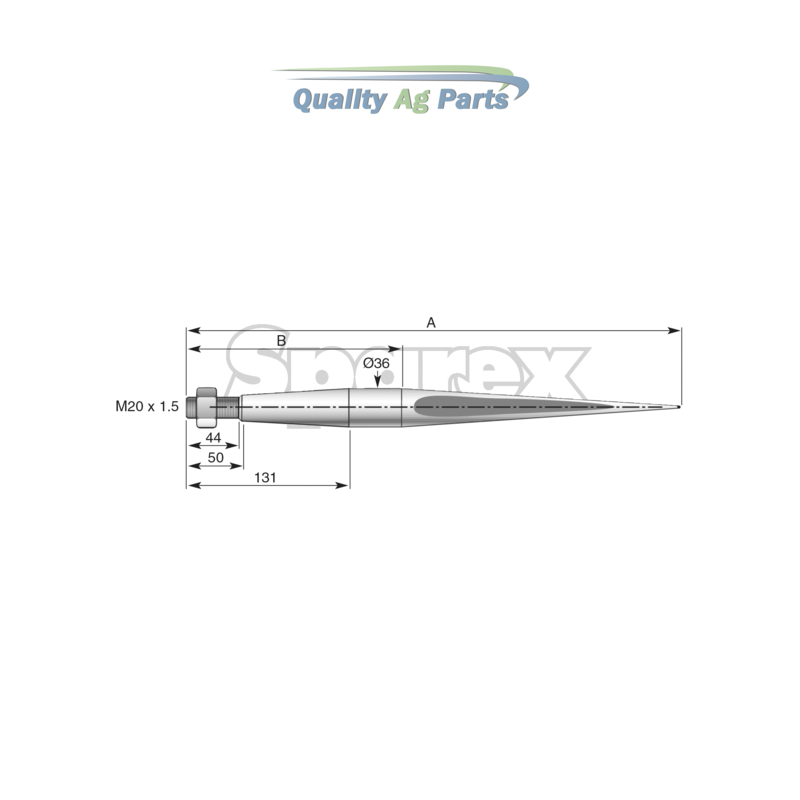

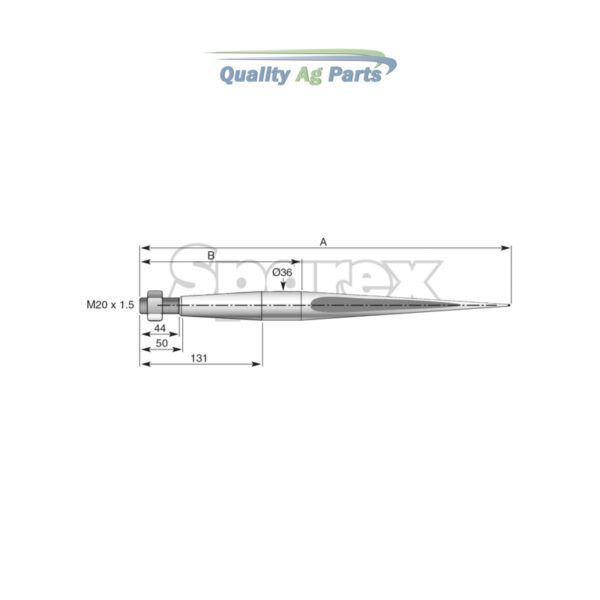

| A mm | 1000 |
|---|---|
| B mm | 250 |
| Brand | SHW |
| Bush HD | S.1840 |
| Bush STD | S.14902 |
| Colour | Red |
| Conus Reference | K004 |
| Fitting | Conus 1 |
| Length Tine ins | 39 |
| Length Tine mm | 1000 |
| Maximum Tine Ø mm | 36 |
| Maximum Torque Nm | 450 |
| Nut | S.77027 |
| Nut Included | Yes |
| OEM Primary Reference | KK221155 |
| Profile | Square |
| Tariff Code | 8431492000 |
| Thread size | M20 x 1.5 |
| Thread type | Metric |
| Type | Straight |
| Kverneland | 221155, KK221155 |
