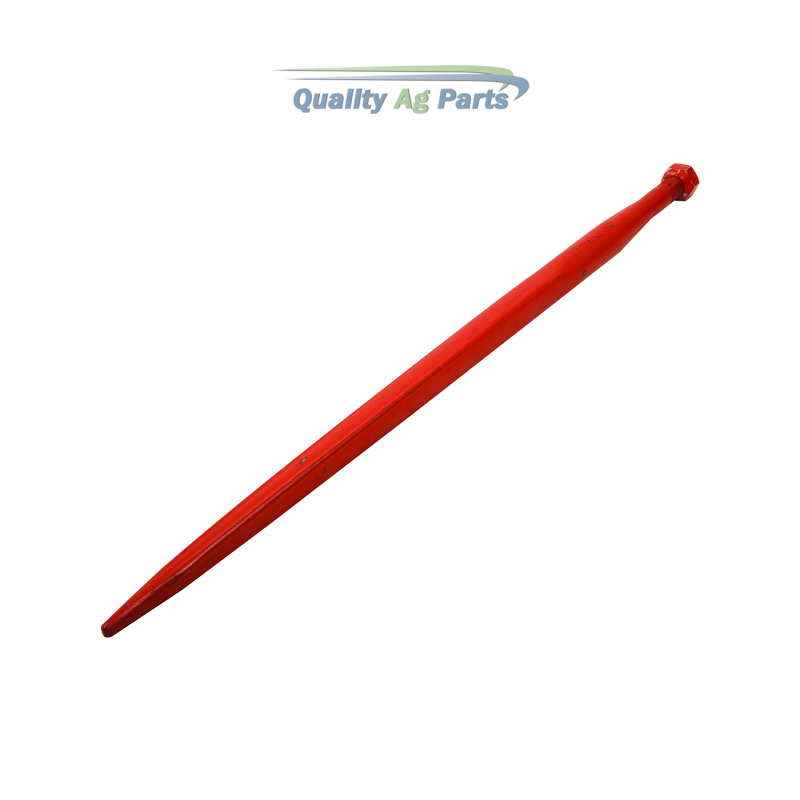

Loader Tine – Straight 810mm, Thread size: M24 x 1.5 (Square) To fit as: KK221189
Loader Tine – Straight 810mm, Thread size: M24 x 1.5 (Square) To fit as: KK221189
Fitting: Conus 1
Max. Tine Ø36mm
$136.85 +GST

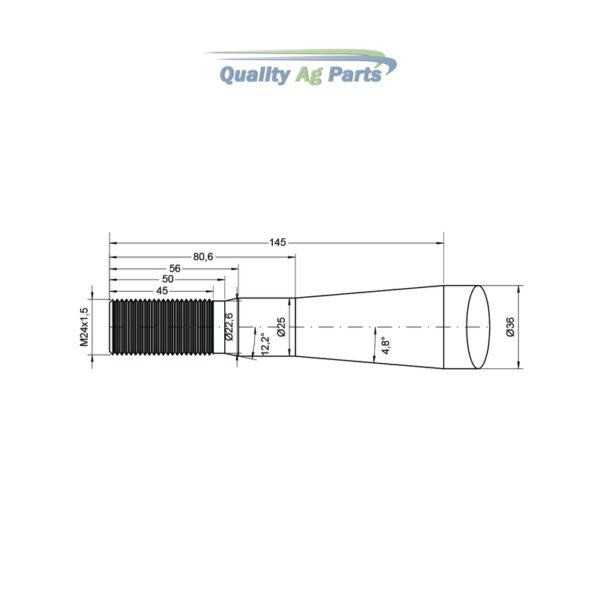

| A mm | 810 |
|---|---|
| B mm | 145 |
| Brand | SHW |
| Bush HD | S.1840 |
| Bush STD | S.14902 |
| Colour | Red |
| Conus Reference | K111 |
| Fitting | Conus 1 |
| Length Tine ins | 32 |
| Length Tine mm | 810 |
| Maximum Tine Ø mm | 36 |
| Maximum Torque Nm | 550 |
| Nut | S.77029 |
| Nut Included | Yes |
| OEM Primary Reference | KK221189 |
| Profile | Square |
| Tariff Code | 8431492000 |
| Thread size | M24 x 1.5 |
| Thread type | Metric |
| Type | Straight |
| Kverneland | KK221189, 221189 |
