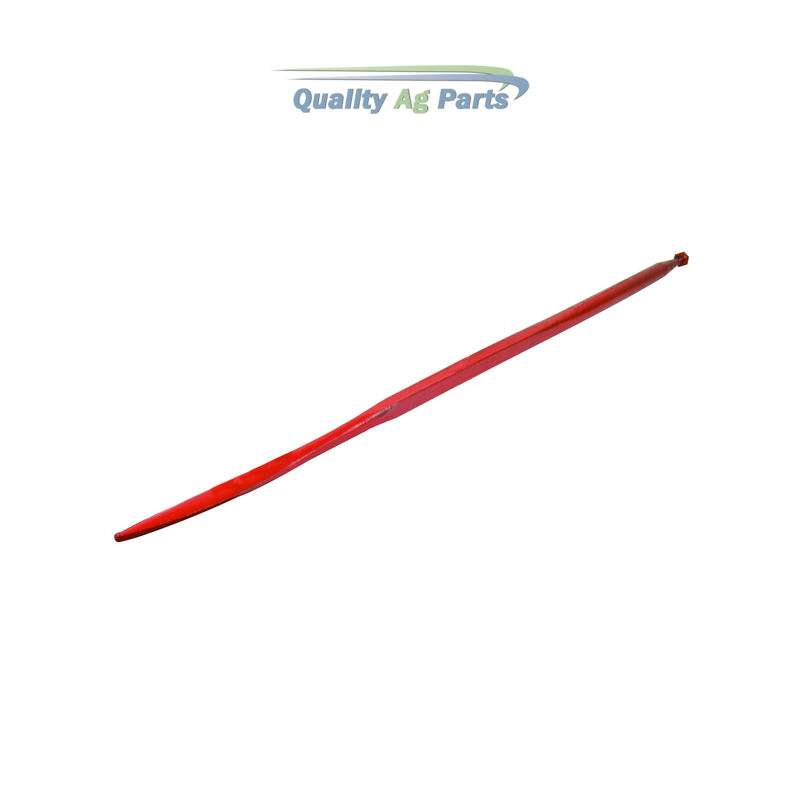

Loader Tine – Straight – Spoon End 1,400mm, Thread size: M20 x 1.5 (Square) To fit as: KK221158
Loader Tine – Straight – Spoon End 1,400mm, Thread size: M20 x 1.5 (Square) To fit as: KK221158

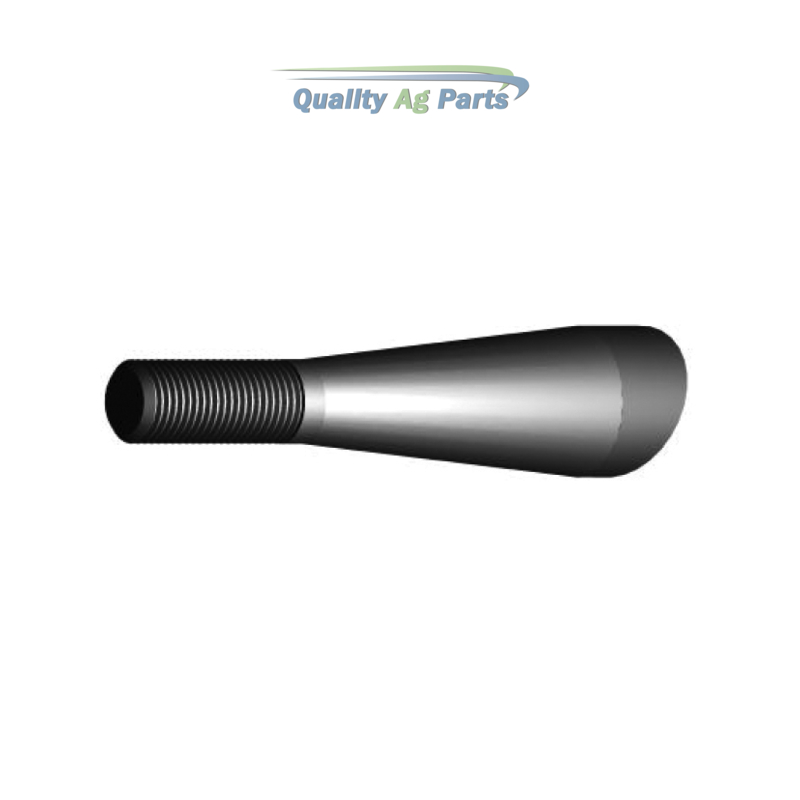

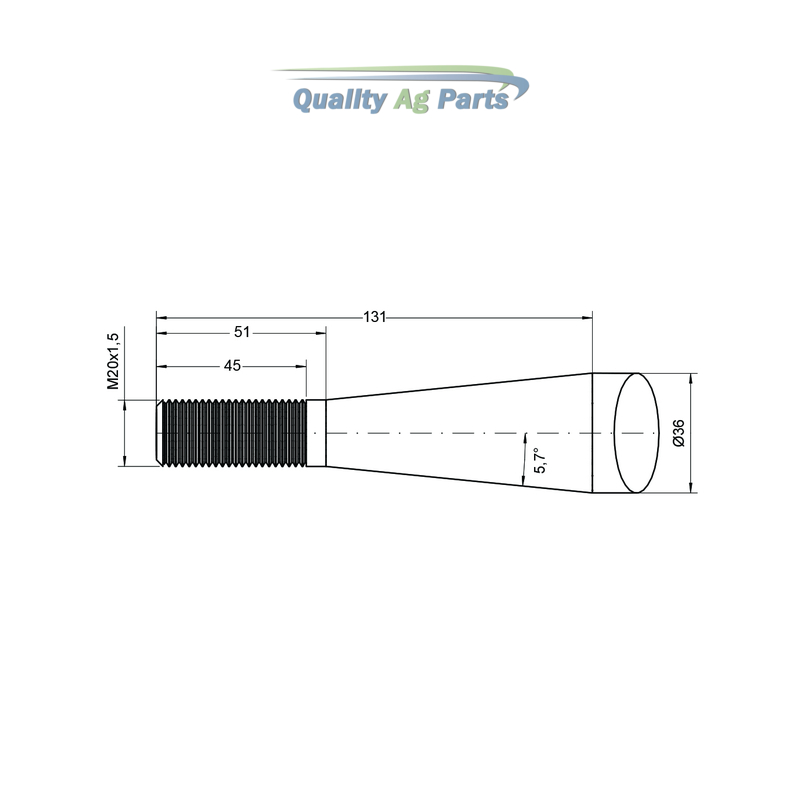

Fitting: Conus 1
Max. Tine Ø36mm
$218.50 +GST

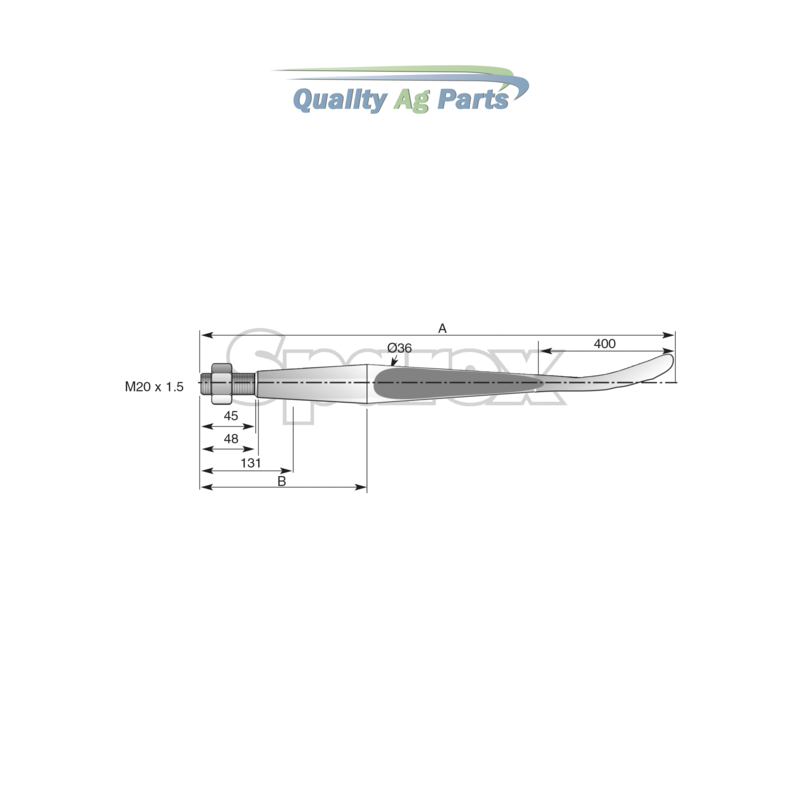

| A mm | 1400 |
|---|---|
| B mm | 600 |
| Brand | SHW |
| Bush HD | S.1840 |
| Bush STD | S.14902 |
| Colour | Red |
| Conus Reference | K004 |
| Fitting | Conus 1 |
| Length Tine ins | 55 |
| Length Tine mm | 1400 |
| Maximum Tine Ø mm | 36 |
| Maximum Torque Nm | 450 |
| Nut | S.77027 |
| Nut Included | Yes |
| OEM Primary Reference | KK221158 |
| Profile | Square |
| Tariff Code | 8431492000 |
| Thread size | M20 x 1.5 |
| Thread type | Metric |
| Type | Straight – Spoon End |
| Grays | Various |
| Kongskilde | Various |
| Lawrence Edwards | Various |
| Tanco | various |
| Twose | Various |
| Bamford | 42489B9 |
| Bomford | 5706/26 |
| Desvoys | 456 |
| Kverneland | 221158, 221121, KK221158 |
