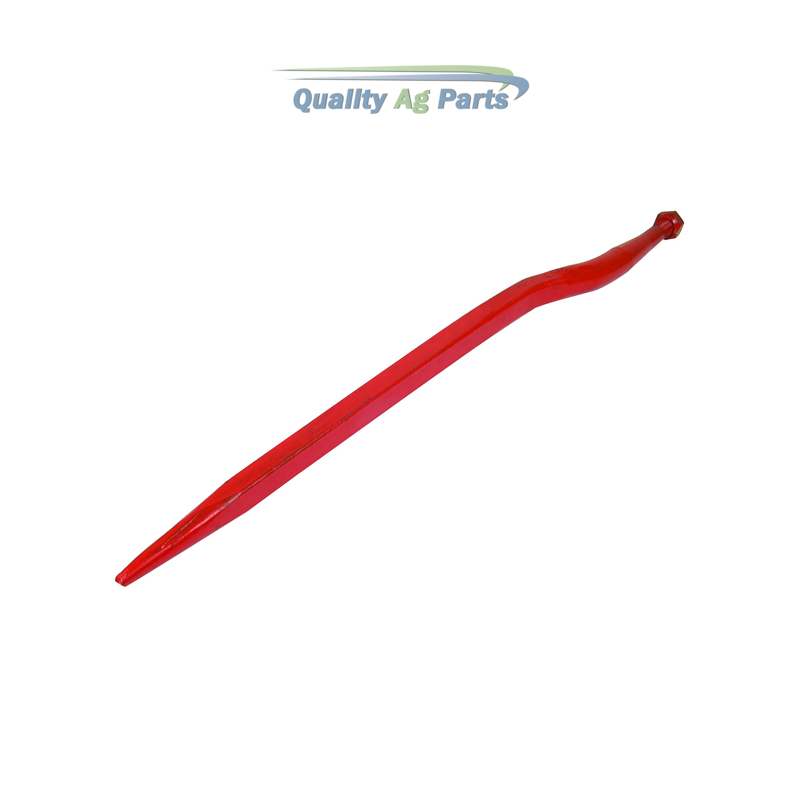

Loader Tine – Cranked 820mm, Thread size: M24 x 1.5 (Square) To fit as: KK221195
Loader Tine – Cranked 820mm, Thread size: M24 x 1.5 (Square) To fit as: KK221195
Fitting: Conus 1
Max. Tine Ø36mm
$142.00 +GST
| Weight | 4.5 kg |
|---|---|

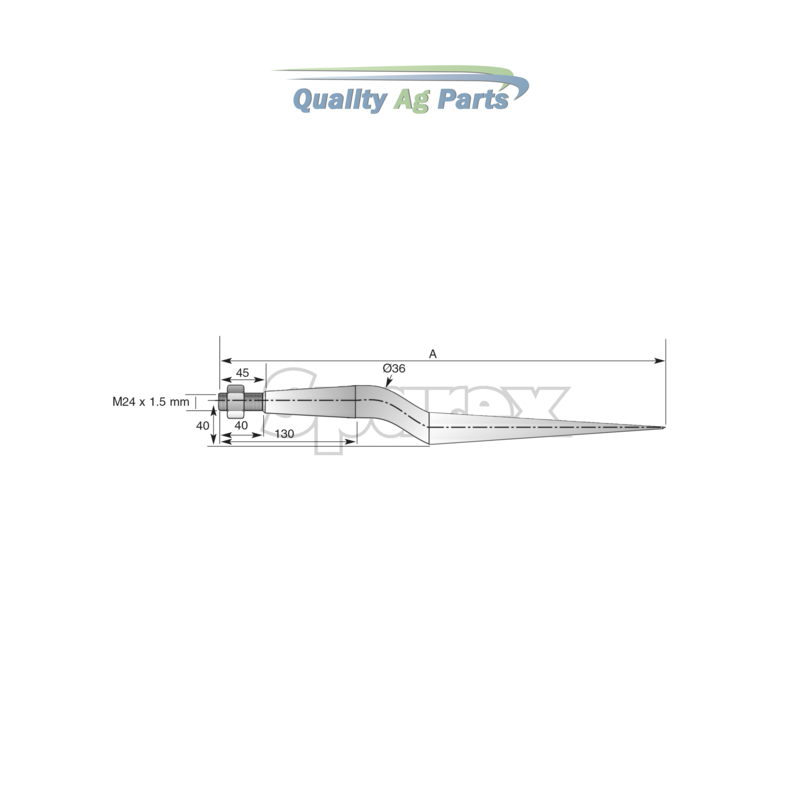

| A mm | 820 |
| B mm | 130 |
| Brand | SHW |
| Bush HD | S.22829 |
| Bush STD | S.21527 |
| Colour | Red |

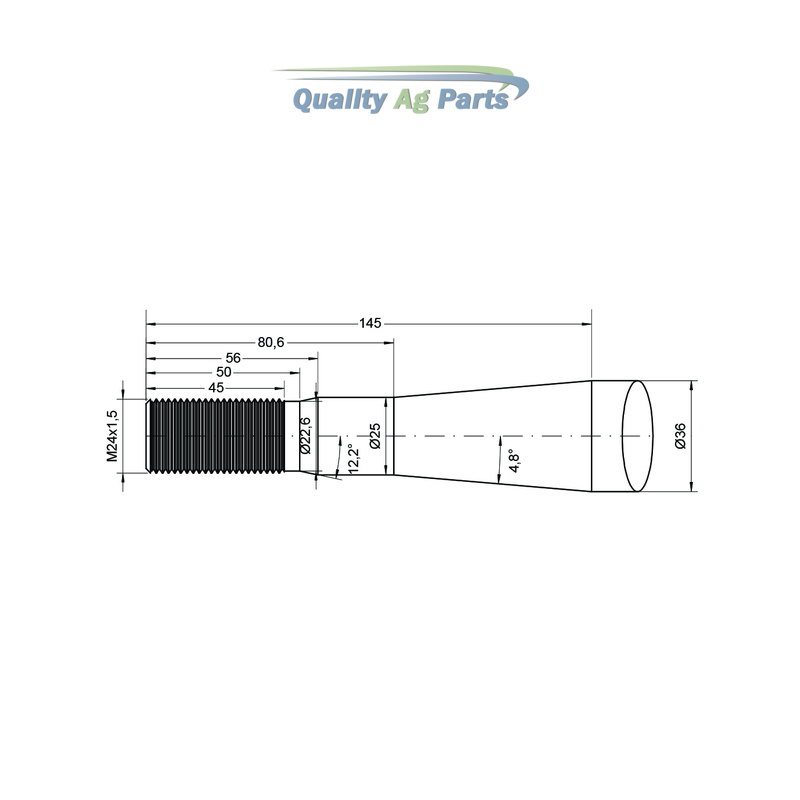

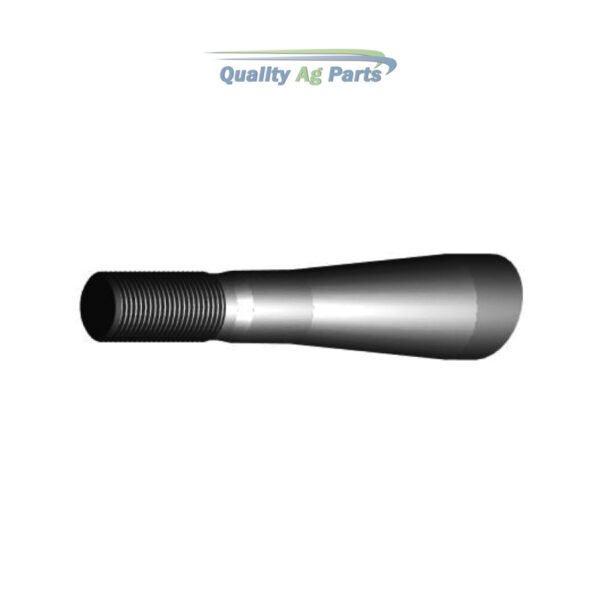

| Conus Reference | K111 |
| Fitting | Conus 1 |
| Length Tine ins | 32 |
| Length Tine mm | 820 |
| Maximum Tine Ø mm | 36 |
| Maximum Torque Nm | 550 |
| Nut | S.77029 |
| Nut Included | Yes |
| OEM Primary Reference | KK221195 |
| Profile | Square |
| Tariff Code | 8431492000 |
| Thread size | M24 x 1.5 |
| Thread type | Metric |
| Type | Cranked |
| Redrock | Various |
| Valpadana | Various |
| ALO Quicke | VARIOUS |
| Kverneland | KK221195, 221195 |
