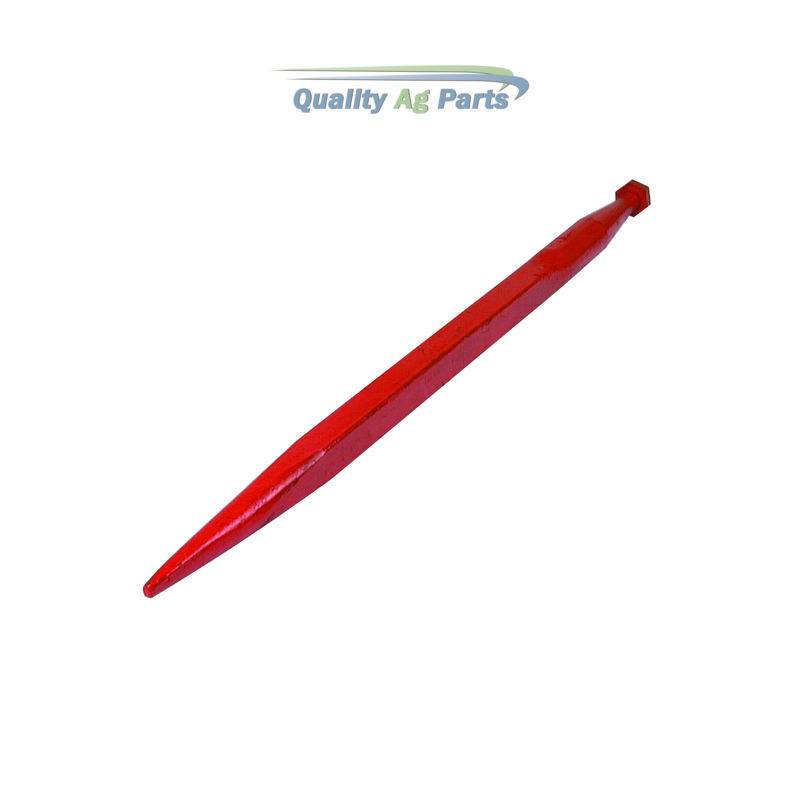

Loader Tine – Straight 680mm, Thread size: M20 x 1.5 (Square) To fit as: KK221193
Loader Tine – Straight 680mm, Thread size: M20 x 1.5 (Square) To fit as: KK221193

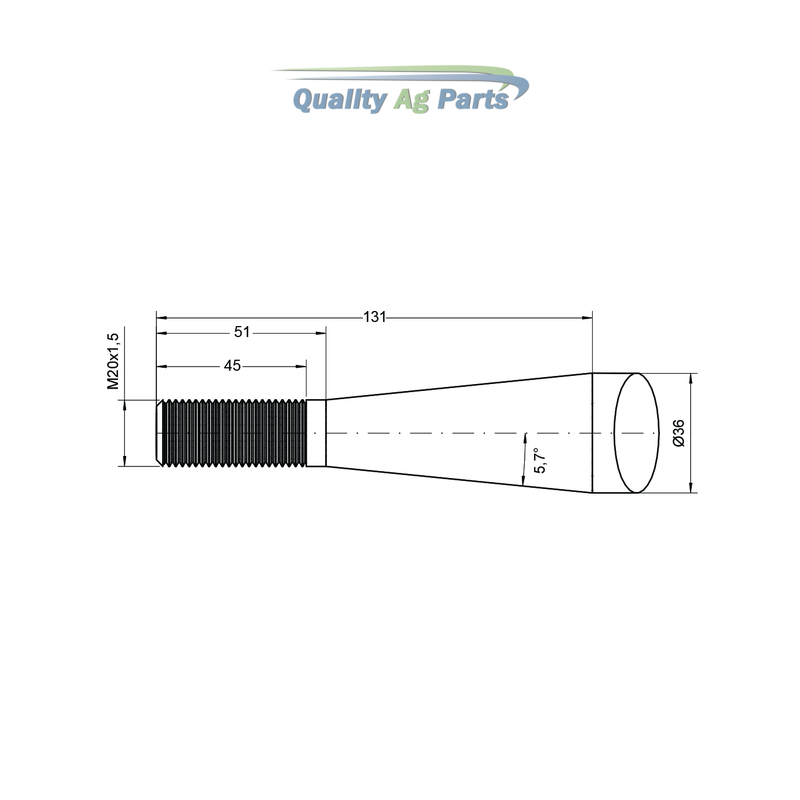

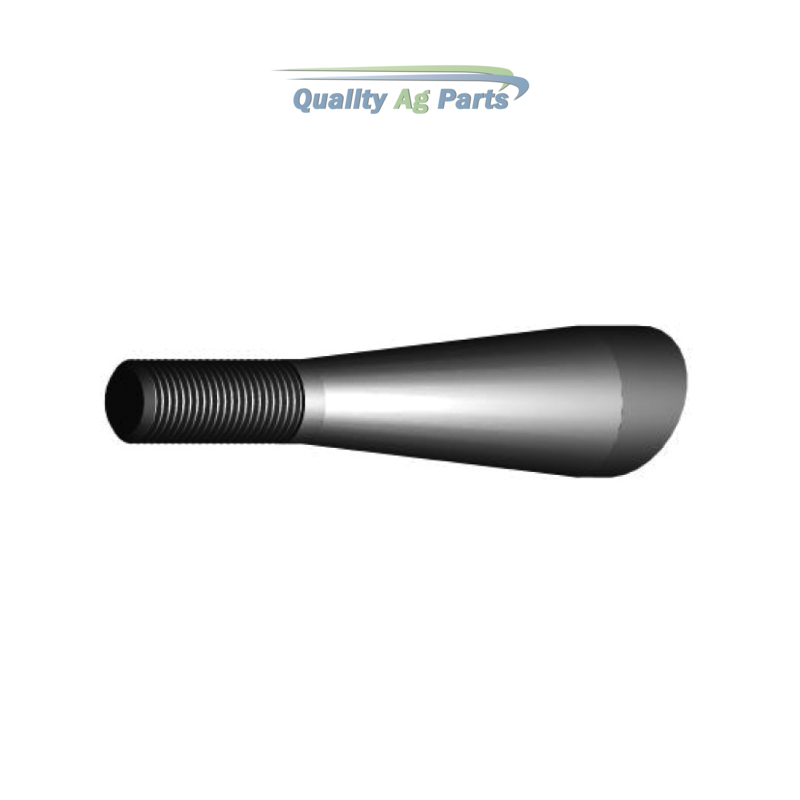

Fitting: Conus 1
Max. Tine Ø36mm
$132.34 +GST

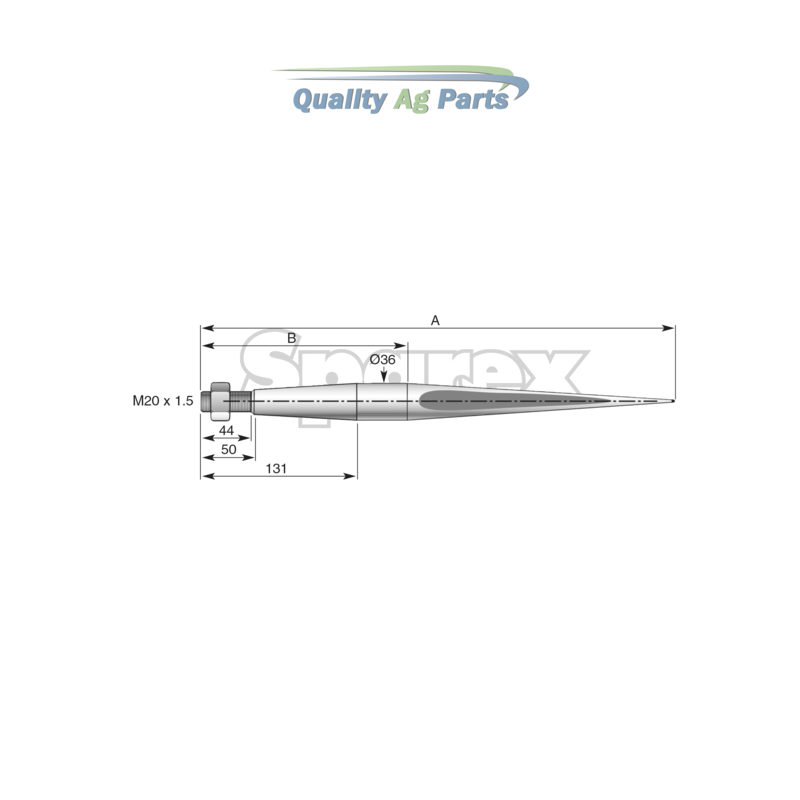

| A mm | 680 |
|---|---|
| B mm | 220 |
| Brand | SHW |
| Bush HD | S.1840 |
| Bush STD | S.14902 |
| Colour | Red |
| Conus Reference | K004 |
| Fitting | Conus 1 |
| Length Tine mm | 680 |
| Maximum Tine Ø mm | 36 |
| Maximum Torque Nm | 450 |
| Nut | S.77027 |
| Nut Included | Yes |
| OEM Primary Reference | KK221193 |
| Profile | Square |
| Tariff Code | 8431492000 |
| Thread size | M20 x 1.5 |
| Thread type | Metric |
| Type | Straight |
| Lawrence Edwards | Various |
| Valpadana | Various |
| ALO Quicke | 5068006 |
| John Deere | DC37751 |
| Kverneland | KK221193, 221193 |
| Stoll | 1417400 |
