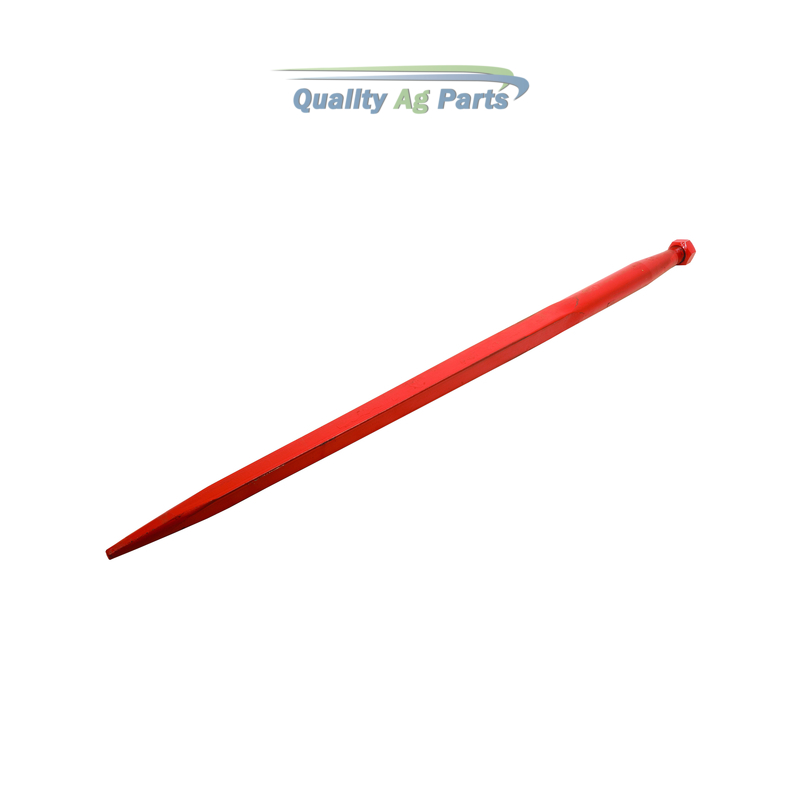

Loader Tine – Straight 1,100mm, Thread size: M30 x 2.0 (Square) To fit as: 241166M30
Loader Tine – Straight 1,100mm, Thread size: M30 x 2.0 (Square) To fit as: 241166M30

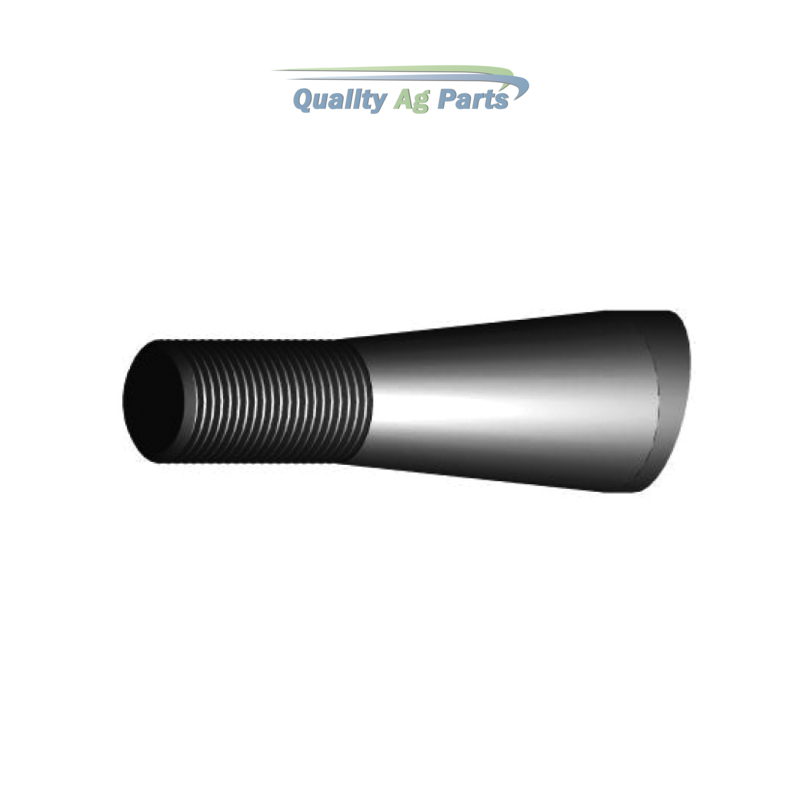

Fitting: Conus 2
Max. Tine Ø44mm
$203.55 +GST

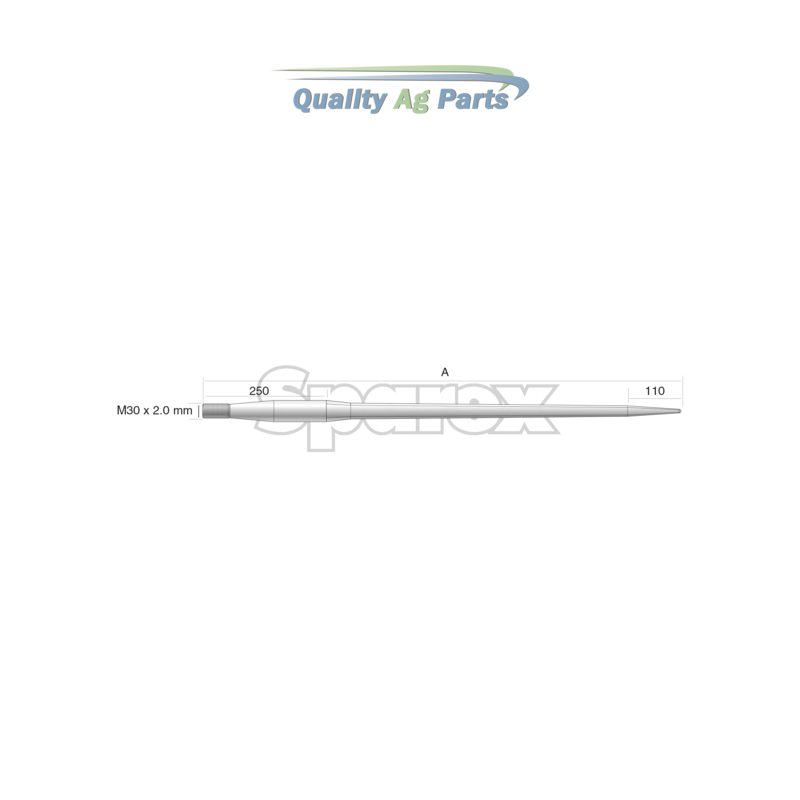

| A mm | 1100 |
|---|---|
| B mm | 118 |
| Brand | SHW |
| Bush STD | S.79069 |
| Colour | Red |
| Conus Reference | K012 |
| Fitting | Conus 2 |
| Length Tine ins | 43 |
| Length Tine mm | 1100 |
| Maximum Tine Ø mm | 44 |
| Maximum Torque Nm | 700 |
| Nut | S.59764 |
| Nut Included | Yes |
| OEM Primary Reference | 241166M30 |
| Profile | Square |
| Tariff Code | 8431492000 |

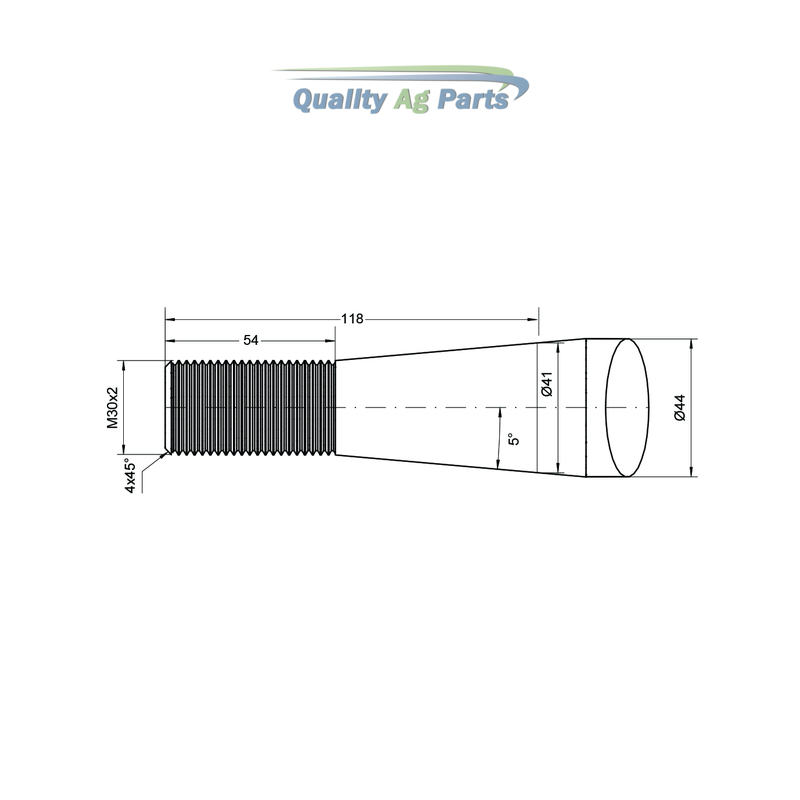

| Thread size | M30 x 2.0 |
| Thread type | Metric |
| Type | Straight |
| Kverneland | 241166M30, KK241166M30 |
