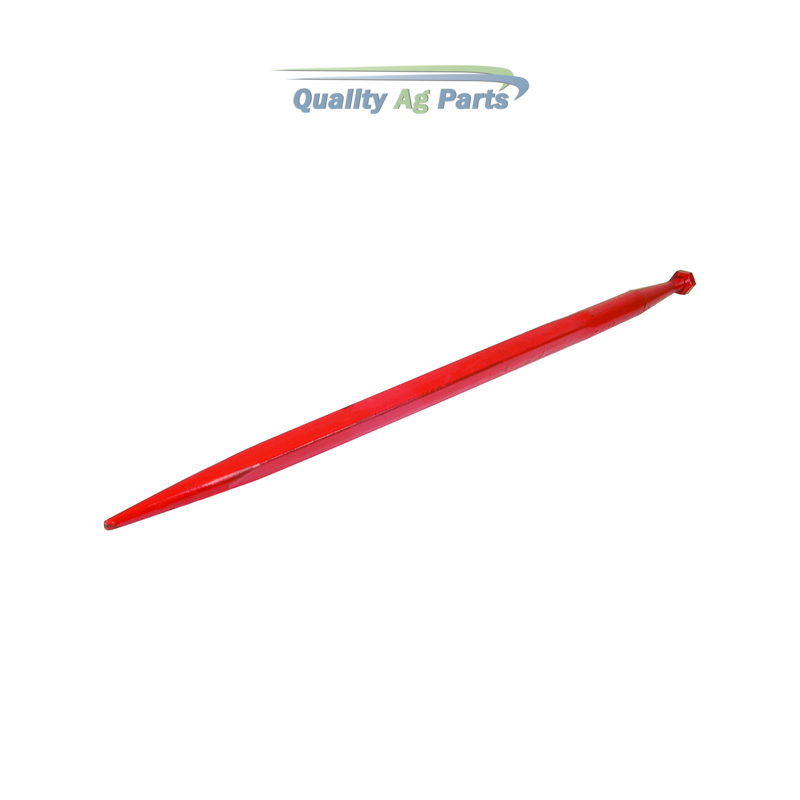

Loader Tine – Straight 820mm, Thread size: M20 x 1.5 (Square) To fit as: KK221151
Loader Tine – Straight 820mm, Thread size: M20 x 1.5 (Square) To fit as: KK221151
Fitting: Conus 1
Max. Tine Ø36mm
$109.25 +GST

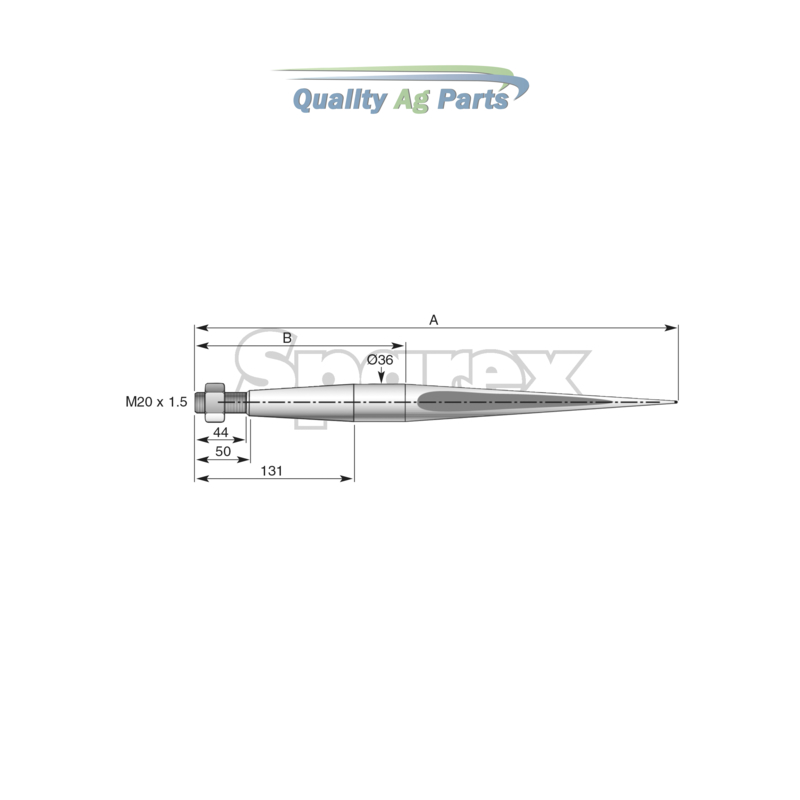

| A mm | 820 |
|---|---|
| B mm | 220 |
| Brand | SHW |
| Bush HD | S.1840 |
| Bush STD | S.14902 |
| Colour | Red |
| Conus Reference | K004 |
| Fitting | Conus 1 |
| Length Tine ins | 32 |
| Length Tine mm | 820 |
| Maximum Tine Ø mm | 36 |
| Maximum Torque Nm | 450 |
| Nut | S.77027 |
| Nut Included | Yes |
| OEM Primary Reference | KK221151 |
| Profile | Square |
| Tariff Code | 8431492000 |
| Thread size | M20 x 1.5 |
| Thread type | Metric |
| Type | Straight |
| Grays | Various |
| Kongskilde | Various |
| M.I.L | various |
| Stoll | Various |
| Valpadana | Various |
| Desvoys | Various |
| Kverneland | 221129, 221151, KK221151 |
| Lawrence Edwards | 809217 |
