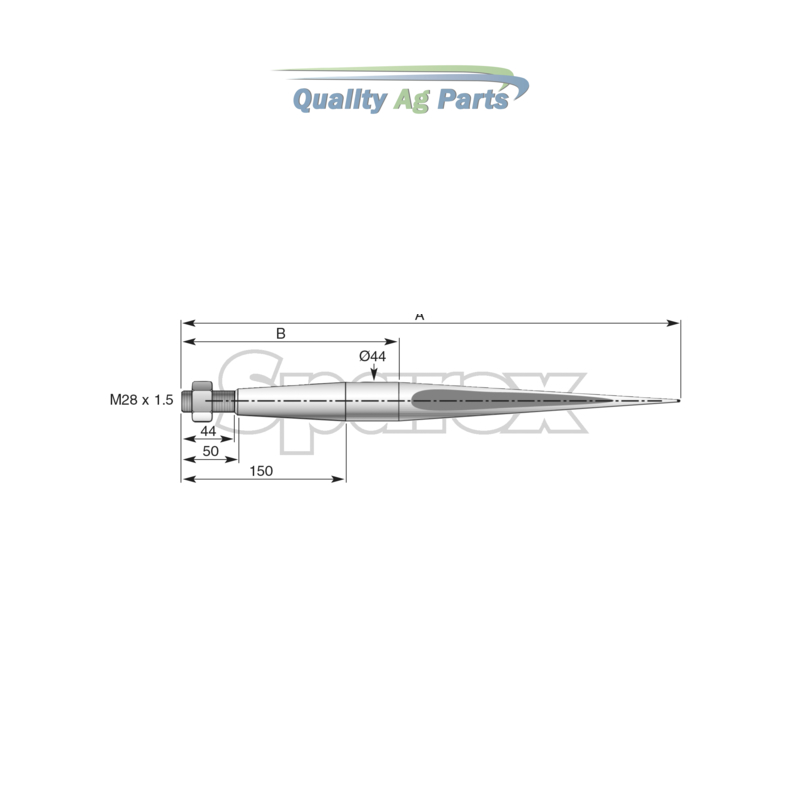

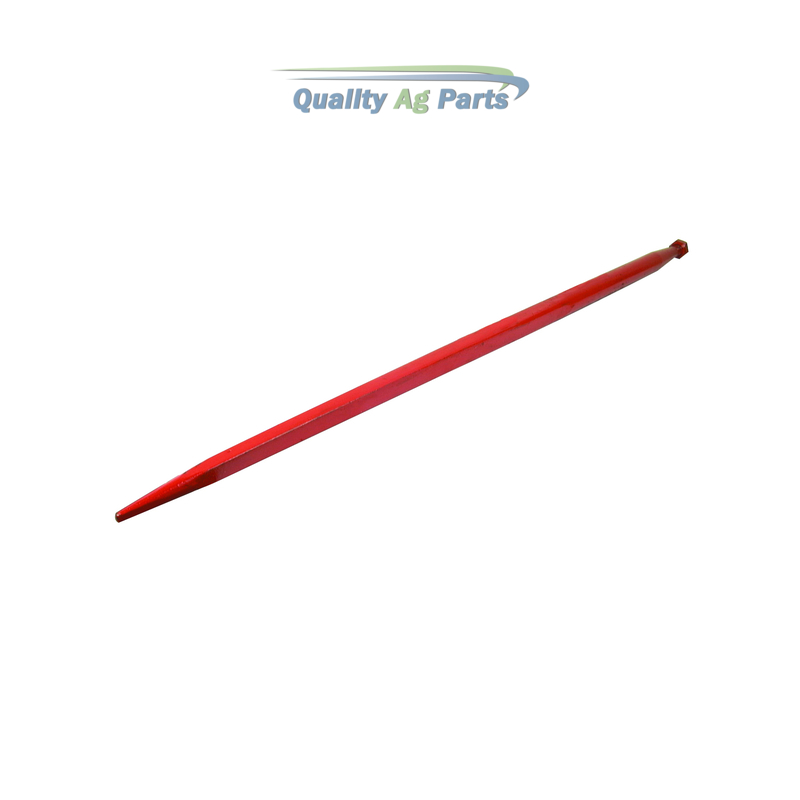

Loader Tine – Straight 1,400mm, Thread size: M28 x 1.5 (Square) To fit as: KK241163
Loader Tine – Straight 1,400mm, Thread size: M28 x 1.5 (Square) To fit as: KK241163

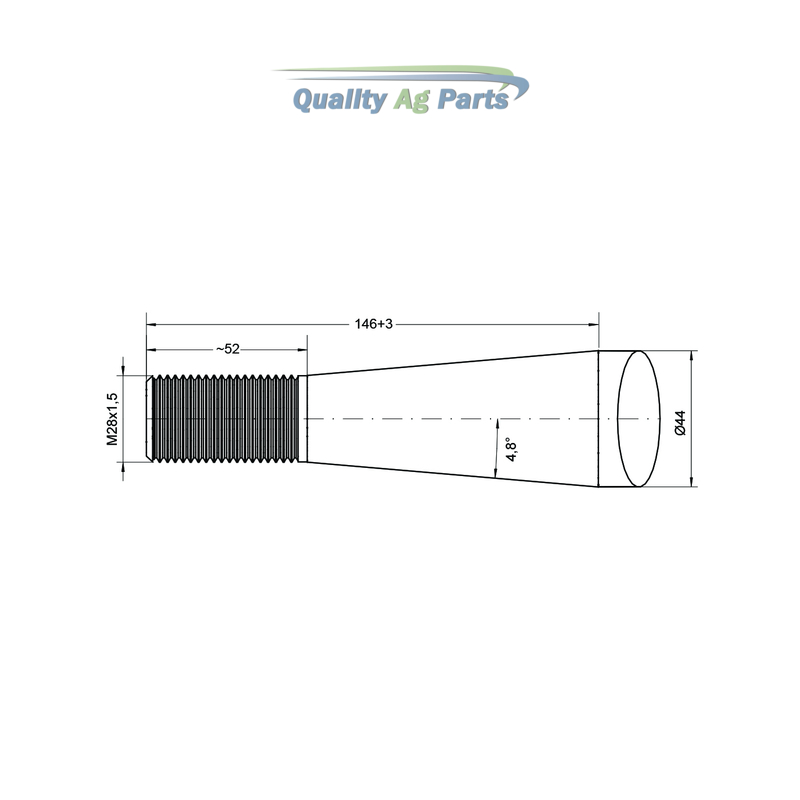

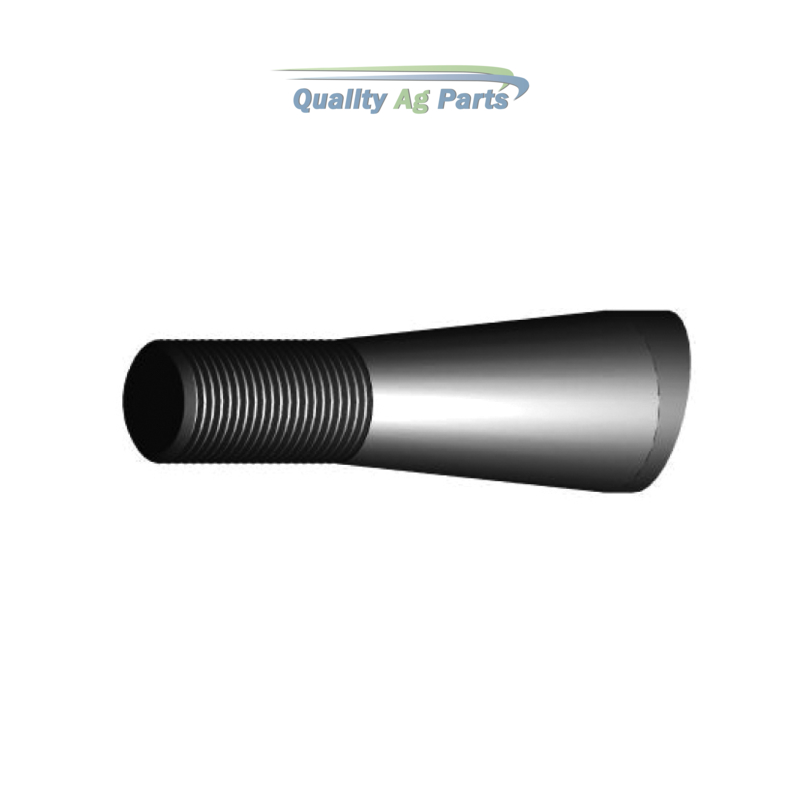

Fitting: Conus 2
Max. Tine Ø44mm
$179.32 +GST
| A mm | 1400 |
|---|---|
| B mm | 680 |
| Brand | SHW |
| Bush HD | S.19836 |
| Bush STD | S.1841 |
| Colour | Red |
| Conus Reference | K013 |
| Fitting | Conus 2 |
| Length Tine ins | 55 |
| Length Tine mm | 1400 |
| Maximum Tine Ø mm | 44 |
| Maximum Torque Nm | 700 |
| Nut | S.77030 |
| Nut Included | Yes |
| OEM Primary Reference | KK241163 |
| Profile | Square |
| Tariff Code | 8431492000 |
| Thread size | M28 x 1.5 |
| Thread type | Metric |
| Type | Straight |
| Kverneland | 241163, 241163M28, KK241163M28 |
