Loader Tine – Straight 660mm, Thread size: M22 x 1.5 (Square)
Loader Tine – Straight 660mm, Thread size: M22 x 1.5 (Square)
Fitting: Conus 1
Max. Tine Ø36mm
$102.35 +GST

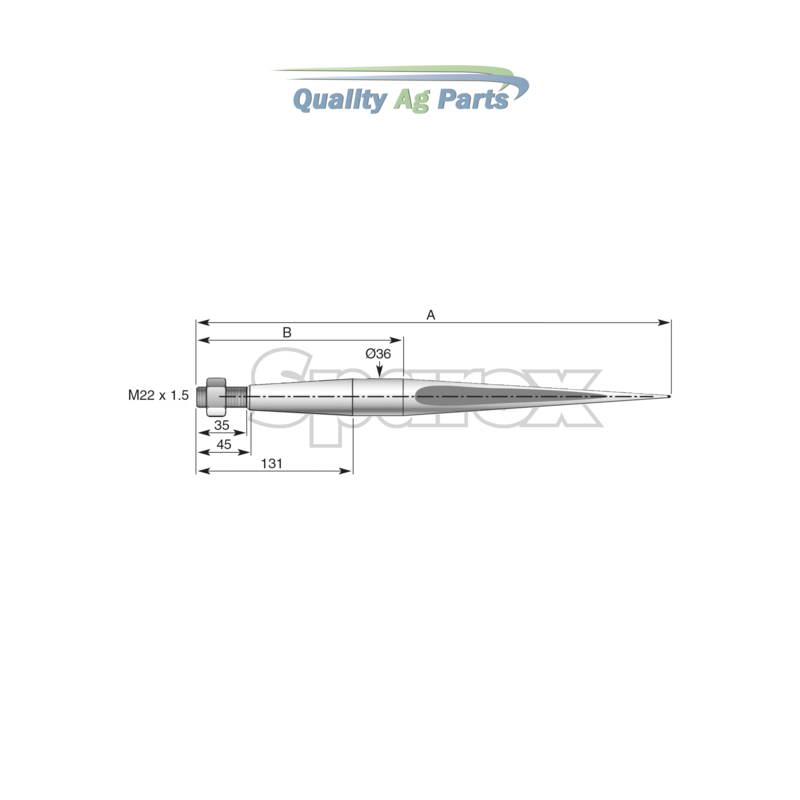

| A mm | 660 |
|---|---|
| B mm | 190 |
| Brand | SHW |
| Bush HD | S.22829 |
| Bush STD | S.21527 |
| Colour | Red |

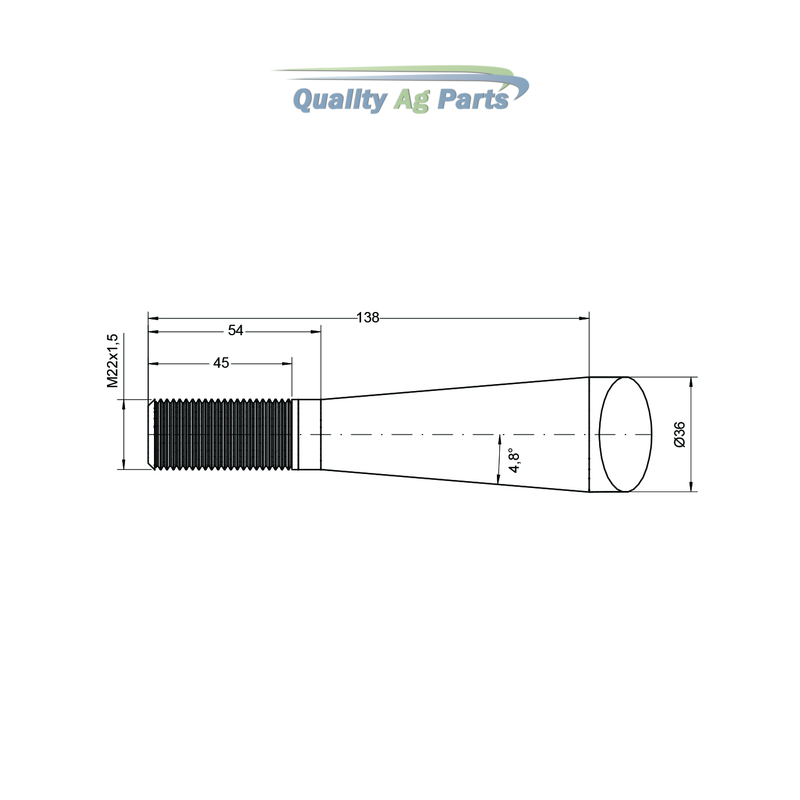

| Conus Reference | K002 |
| Fitting | Conus 1 |
| Length Tine ins | 26 |
| Length Tine mm | 660 |
| Maximum Tine Ø mm | 36 |
| Maximum Torque Nm | 500 |
| Nut | S.77028 |
| Nut Included | Yes |
| Profile | Square |
| Tariff Code | 8431492000 |
| Thread size | M22 x 1.5 |
| Thread type | Metric |
| Type | Straight |
| Tanco | various |
| Faucheux | Various |
