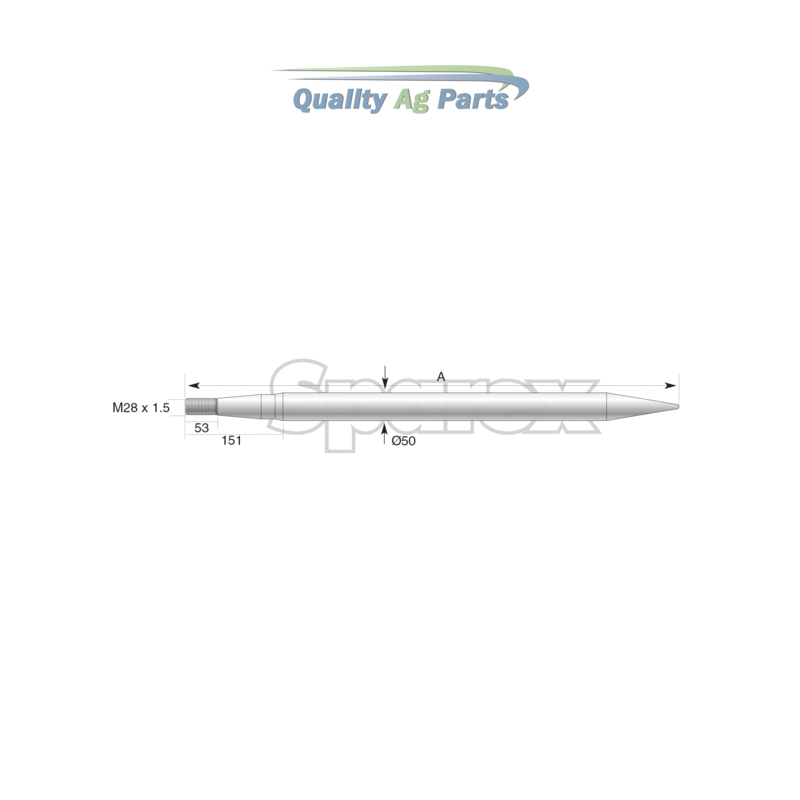

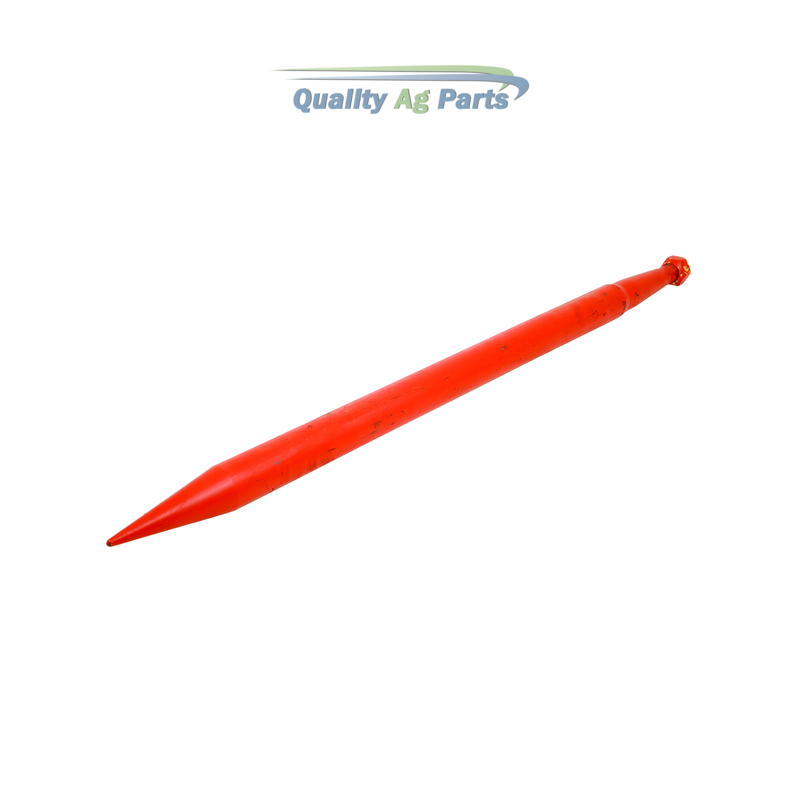

Loader Tine – Straight 970mm, Thread size: M28 x 1.5 (Round) To fit as: 1000827
Loader Tine – Straight 970mm, Thread size: M28 x 1.5 (Round) To fit as: 1000827

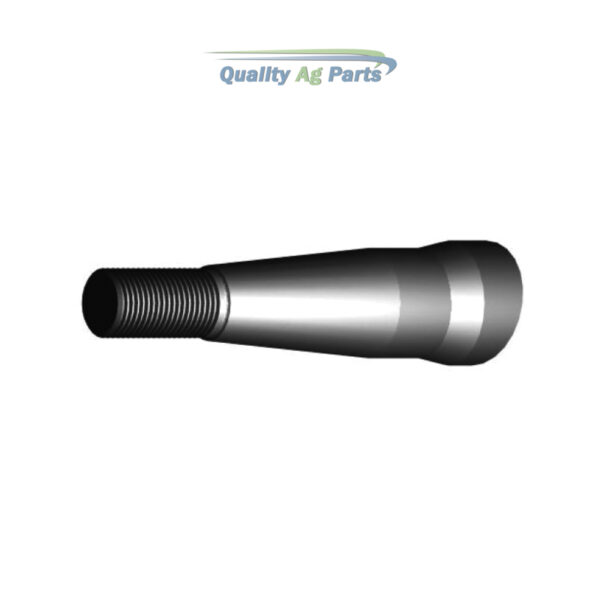

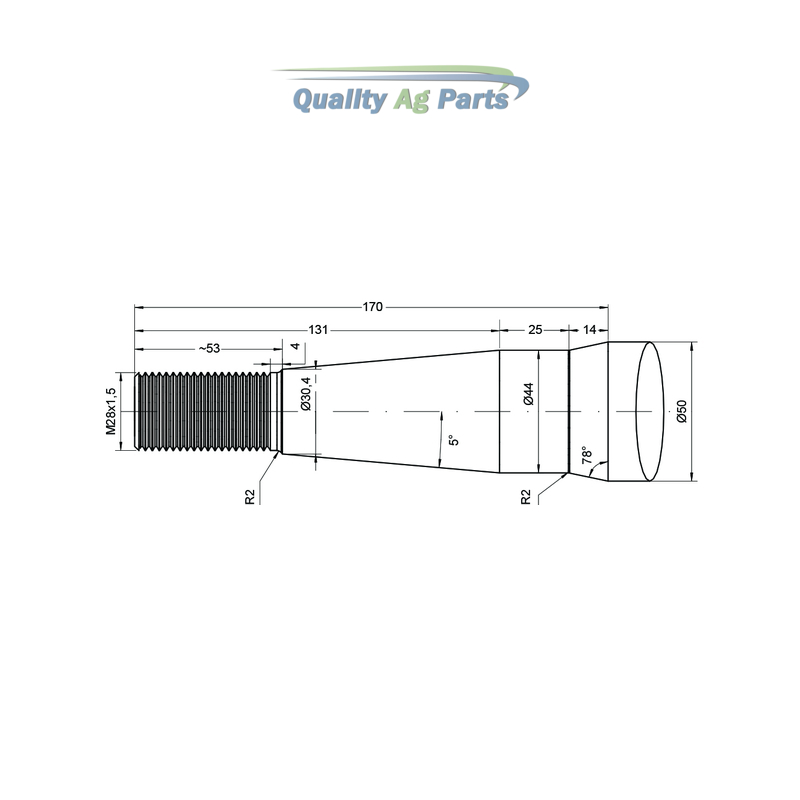

Fitting: Special Conus
Max. Tine Ø50mm
$391.00 +GST
| Weight | 12.6 kg |
|---|---|
| A mm | 970 |
| B mm | 151 |
| Brand | SHW |
| Bush STD | S.79083 |
| Colour | Red |
| Conus Reference | K125 |
| Fitting | Special Conus |
| Length Tine mm | 970 |
| Maximum Tine Ø mm | 50 |
| Maximum Torque Nm | 700 |
| Nut | S.77030 |
| Nut Included | Yes |
| OEM Primary Reference | 1000827 |
| Profile | Round |
| Tariff Code | 8431492000 |
| Thread size | M28 x 1.5 |
| Thread type | Metric |
| Type | Straight |
| Redrock | 1000827 |
